GPSMAP® 8410xsv

Part Number 010-02091-02

Description

SERIOUS ANGLERS, CRUISERS, SAILORS AND SAIL RACERS DEMAND SERIOUS EQUIPMENT

The easy-to-use, easy-to-install chartplotter/sonar combo delivers MFD performance in a combo-size package.



Get wider viewing
angles  and
superior  clarity
on the touchscreen
with a full HD
in-plane
switching
(IPS) display.

Navigate
confidently
with built-in
Garmin  Navionics+
inland and
coastal mapping1.

Easily build
your
marine  system
using
the best  of
network
connectivity.

See below and around
your boat
with  built-in
sonar
capabilities (transducers
sold separately).

From ANT®
technology  to
Wi-Fi® networking,
there are countless
ways to connect to
your system.

With SmartMode
station controls,
everything is designed
to  give you quick,
one-touch  access
to the information
you  need.

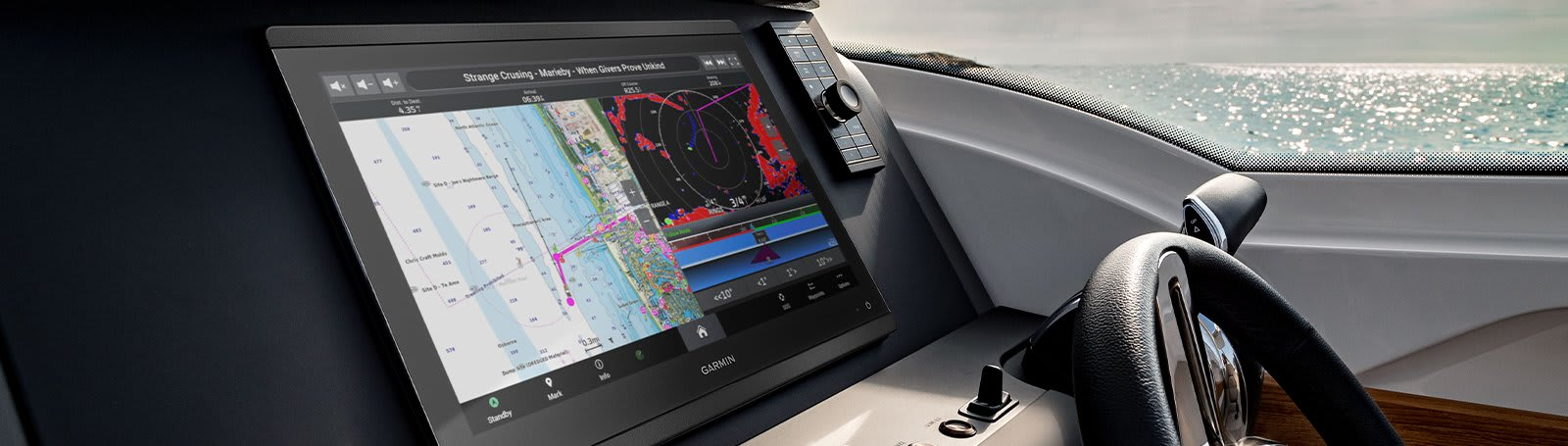

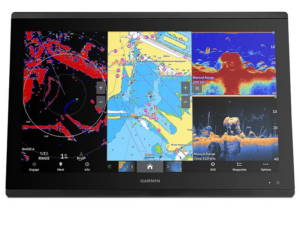

HD IPS TOUCHSCREEN

Available in sizes from 10” to 24”,
this display offers wider viewing angles,
superior clarity and sunlight readability,
even with polarized sunglasses.

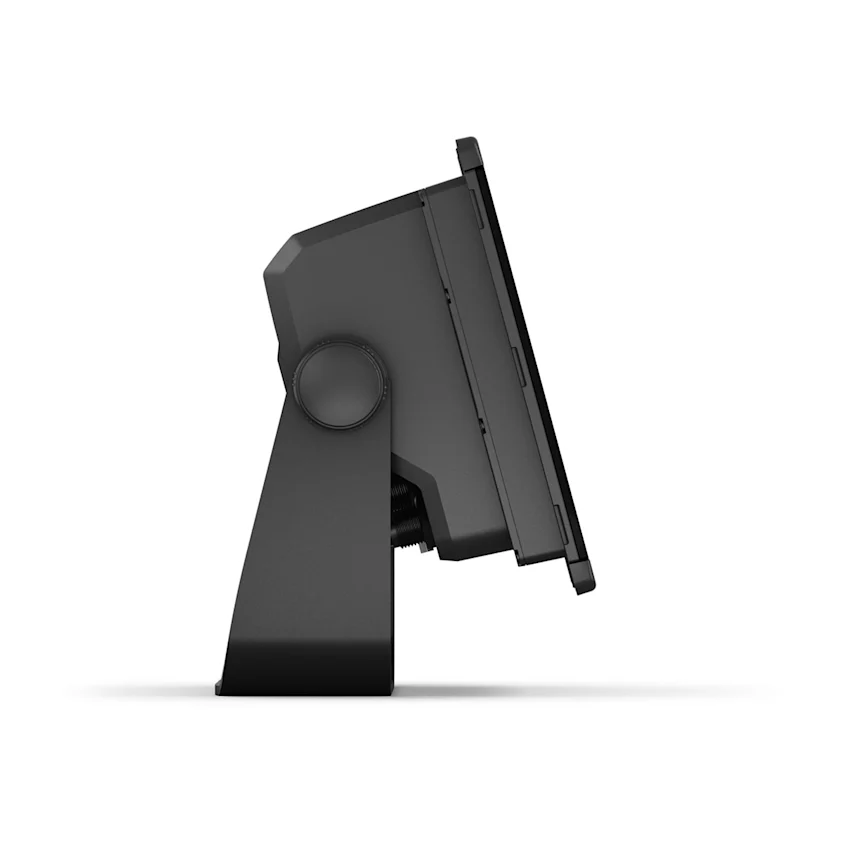

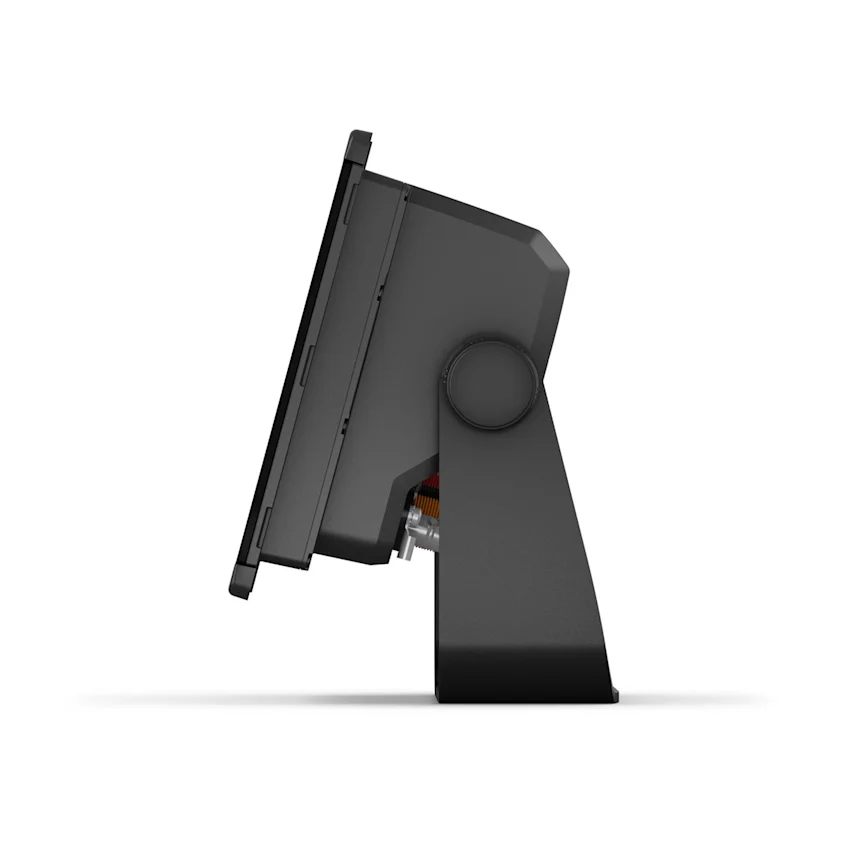

SIMPLE, ATTRACTIVE
MOUNTING OPTIONS

You can install multiple displays,
either flat mounted edge-to-edge
for a sleek glass helm look
or mounted flush — creating
a stunning helm.

GRID 20 REMOTE CONTROL

The optional, easy-to-use
GRID 20 remote input device
provides intuitive remote
access and control of your
entire Garmin marine system.

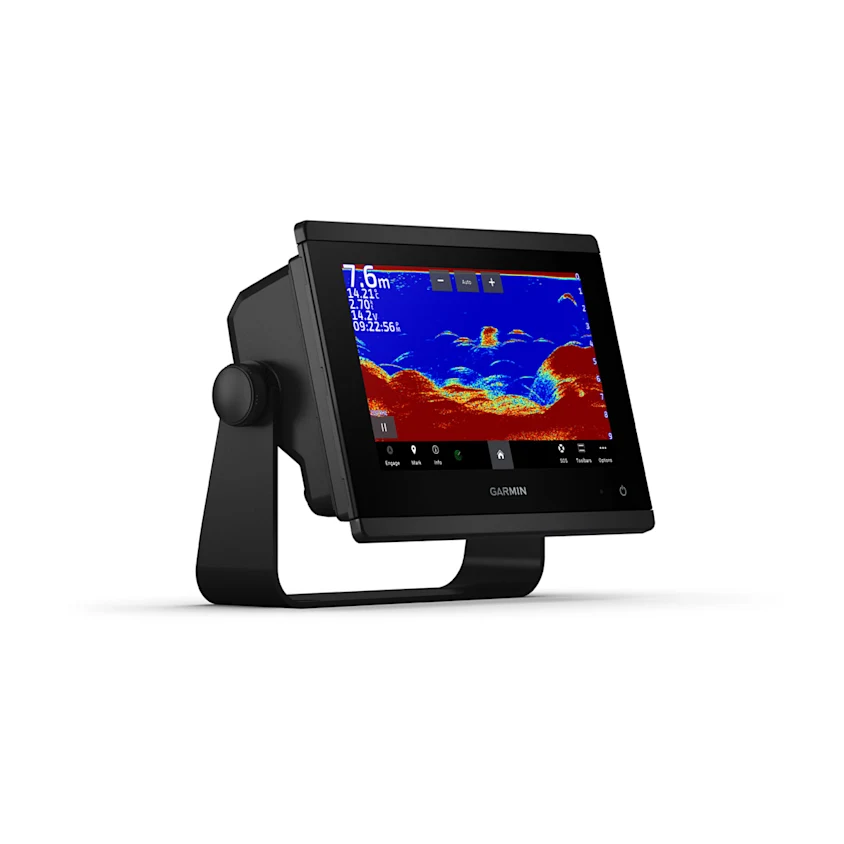

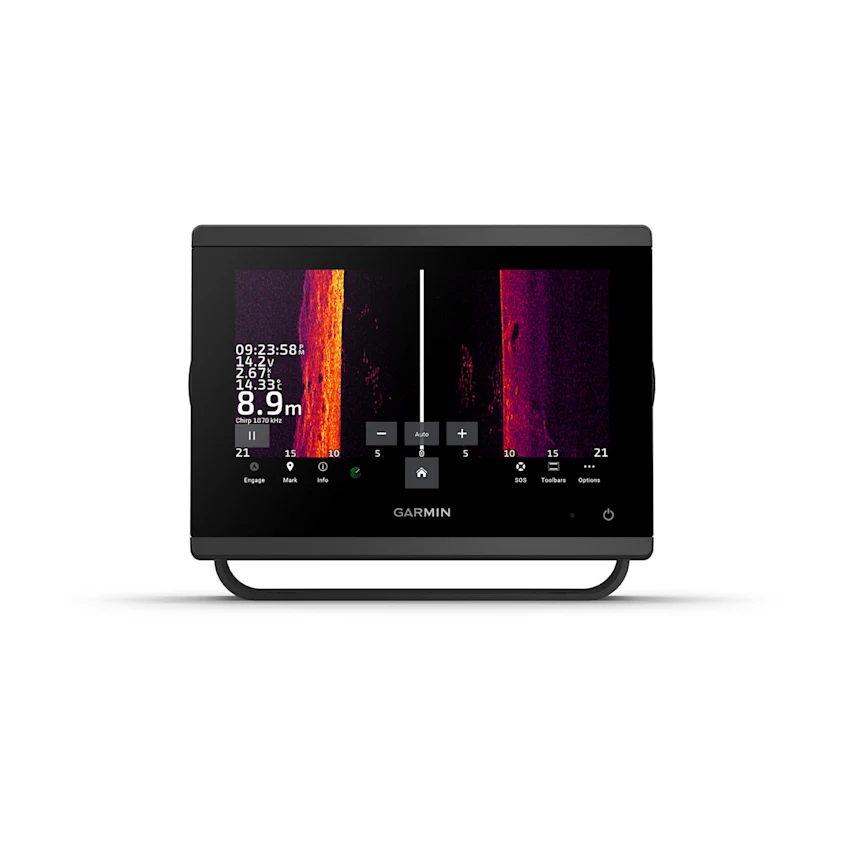

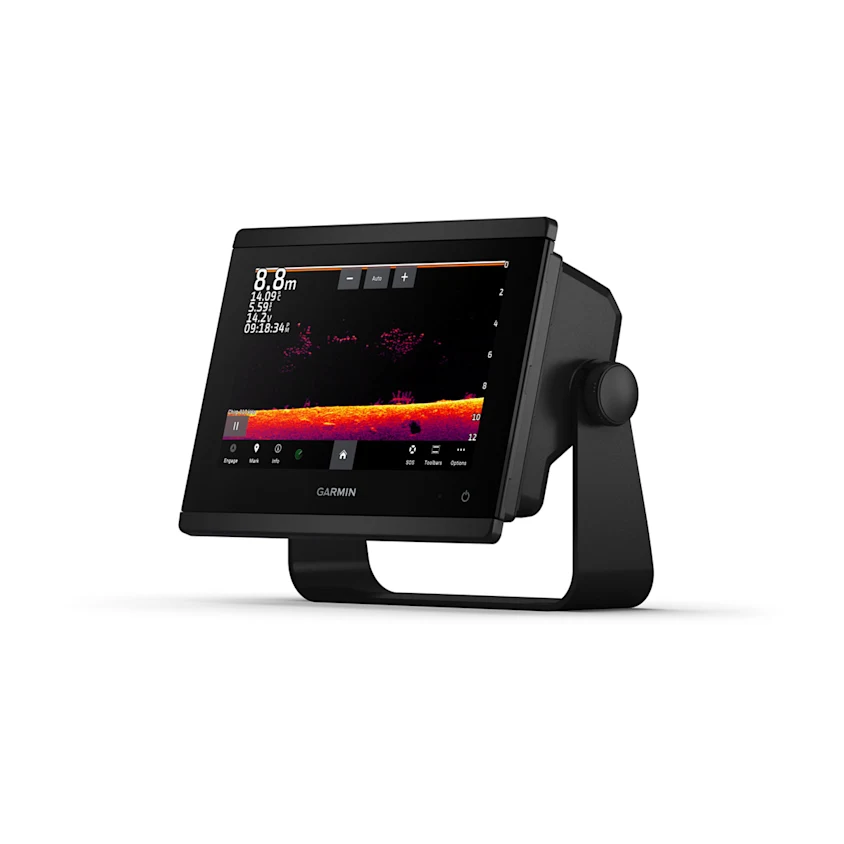

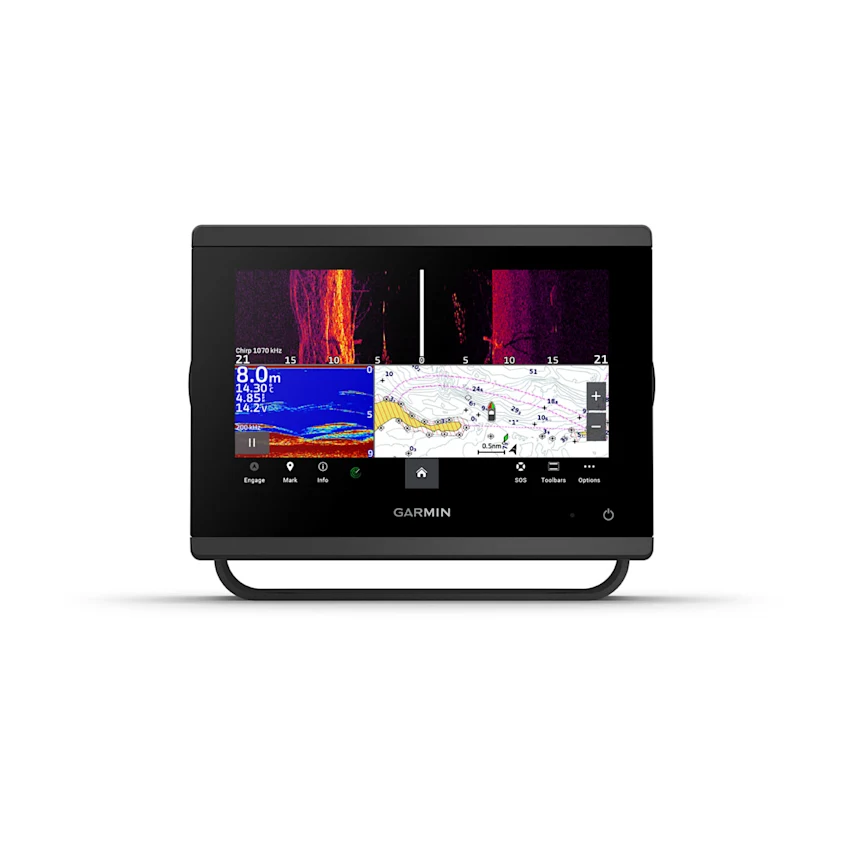

TRADITIONAL AND SCANNING SONAR SUPPORT

Get built-in support for 1-kW Dual-Channel
CHIRP traditional sonar for superior target separation
and ClearVü and SideVü scanning sonars to
see up to 1,000’ below and around your
boat at 260 kHz (requires transducer, sold separately).

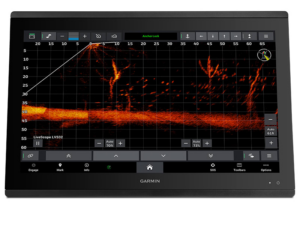

LIVE SONAR SUPPORT

Pair your chartplotter with Garmin
live sonar options (transducer sold separately)
to see all around your boat in real time.





GARMIN SAILASSIST
SAILING FEATURES

View laylines, race start line guidance,
enhanced wind rose,
heading and course-over-ground lines,
true wind data fields and
tide/current/time slider,
wind angle, set and drift,
wind speed, polars and more.

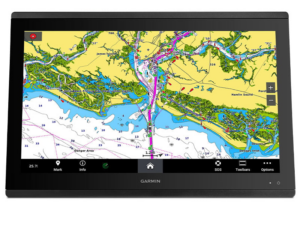

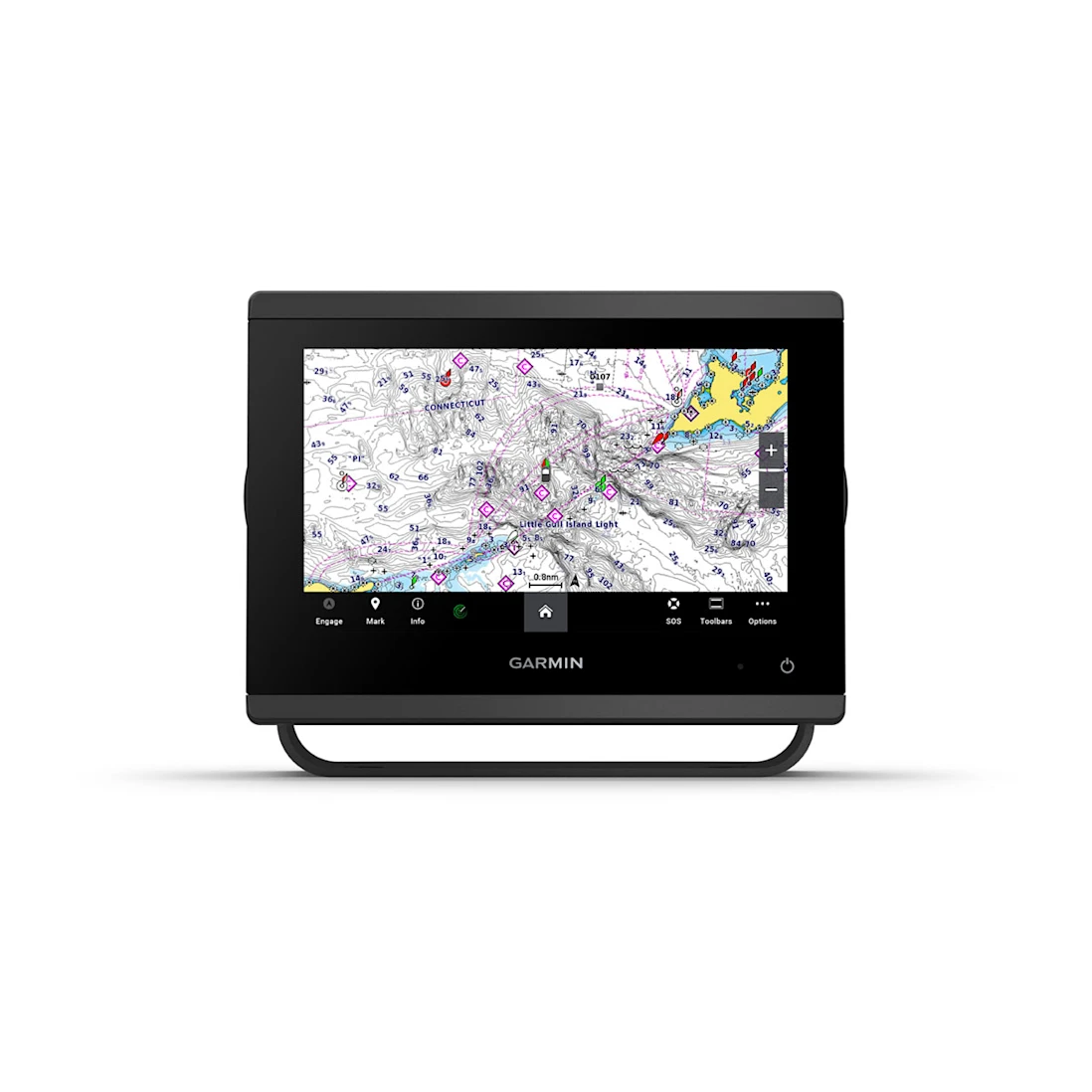

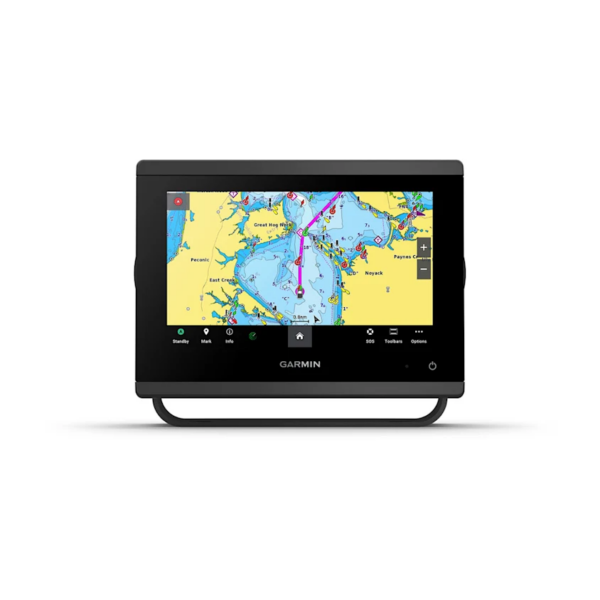

PRELOADED MAPPING

Experience unparalleled coverage
and detail with built-in
Garmin Navionics+ integrated
coastal and inland mapping that
includes Auto Guidance+ technology3
and a 1-year subscription for
downloadable daily updates and more
on select chartplotters.

OPTIONAL CHARTS AND MAPS

Bring a fresh new look and feel
to your chartplotter with optional
upgrade to Garmin Navionics Vision+
premium chart subscription,
featuring downloadable
high-resolution relief shading,
satellite imagery, sonar imagery and more.

SAILING POLARS

Use the polar table to see key data, including
how fast you should go at a certain wind angle
and speed — so you know whether you need to
adjust sail trim.

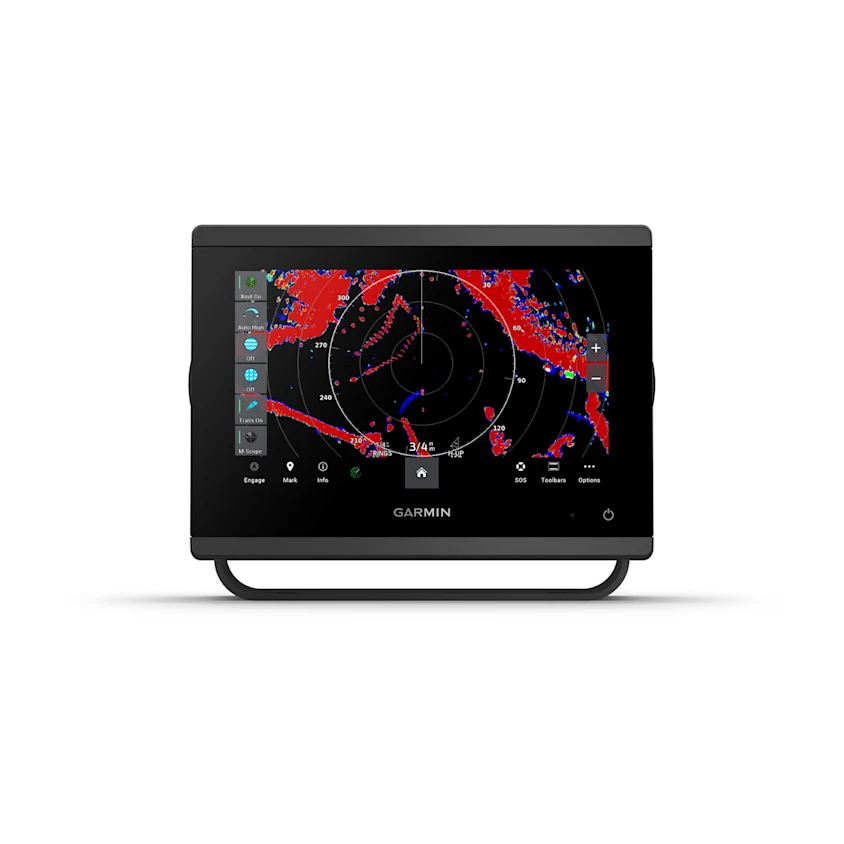

GARMIN MARINE
NETWORK

If you have multiple compatible
Garmin devices on your boat,
you can share information —
such as maps, user data,
radar and IP cameras —
among them.

NMEA 2000® AND NMEA
0183 NETWORKS

Connect to autopilots,
digital switching, weather,
FUSION-Link audio system,
media, VHF, AIS and more
from one screen.

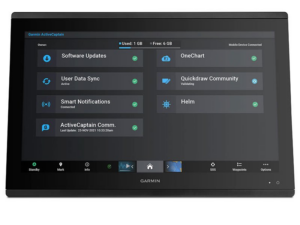

ACTIVECAPTAIN® APP

Built-in Wi-Fi® connectivity
pairs with the free all-in-one
mobile app for access to
the all-in-one mobile app
for access to the OneChart
feature, smart notifications,
software updates, Helm,
Garmin Quickdraw Community
data and more.

INTEGRATED BLUETOOTH®
AND ANT TECHNOLOGIES

Connect with some of your
favorite devices, such as quatix®
marine watches, gWind Wireless 2
transducers, GNX Wind
marine instruments and
wireless remote controls.

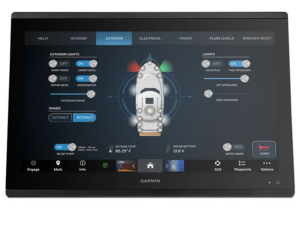

ONEHELM FEATURE

This feature brings together
all the operations and
capabilities of third-party
devices, such as
EmpirBus digital switching,
on one screen.

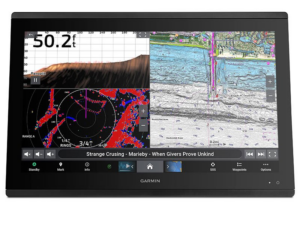

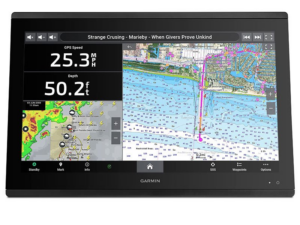

SMARTMODE STATION
CONTROLS

Get quick, one-touch access
to the information you need
to ease high-stress situations
such as docking.
You can incorporate
networked sonar, radar,
cameras, media and more.

POWER-POLE® SHALLOW
WATER ANCHOR

By networking select Garmin
chartplotters with a Force®
trolling motor and your compatible
Power-Pole shallow water
anchoring system,
you can access advanced
boat control features6 from
your plotter, including smart
anchor auto-deployment,
smart anchor jog, auto stow,
anchor drag detection and
auto guidance7
end-of-route anchoring.
Spend more time fishing,
less time positioning.

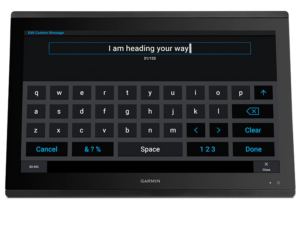

SEND INREACH® DEVICE MESSAGES

Pair your inReach satellite communicator5

to your chartplotter, and type
custom messages using your MFD’s
on-screen keyboard. Access your
contact list or enter an email, inReach
address or phone number.
You can also group messages
by conversation for a texting-like
experience.

SPECS

General

Dimension 10.25″ x 8.0625″ x 2.95″ (25.9 cm x 20.5 cm x 7.5 cm)
Weight 5.2 lbs (2.4 kg)
Waterproof IPX7
Touchscreen
Display Type WUXGA, IPS
Display Size 8.6″ x 5.4″; 10.1″ diagonal (21.8 cm x 13.7 cm; 25.7 cm diagonal)
Display Resolution 1920 x 1200 pixels
Mounting Options Bail, flush or flat (Garmin does not offer any hardware or accessories for a flat-mount installation. Professional tools and knowledge is required.)
Input Touchscreen

Maps & Memory

Accepts Data Cards 2 microSD cards (back of unit)
Waypoints 5000
Track points 50,000
Tracks 50 saved tracks
Navigation Routes 100

Sensors

GPS
GLONASS
Galileo
Has built-in receiver
Receiver 10 Hz
NMEA 2000 Compatible
NMEA 0183 Compatible
Supports WAAS

Built-in Maps

Tide tables

Optional Map Support

BlueChart g3
BlueChart g3 Vision
LakeVü g3
LakeVü g3 Ultra
Garmin Navionics+™
Garmin Navionics Vision+™
TOPO 100K
Standard Mapping
Garmin Quickdraw Contours
Raster chart support

Chartplotter Features

Smart Mode Compatible
AIS
DSC
Supports Fusion-Link™ compatible radios
GSD Black Box Sonar Support
GCV Black Box Sonar Support
ActiveCaptain® compatible yes
GRID (Garmin Remote Input Device) compatible
Wireless Remote Compatible
Sailing Features
Spoken audio alerts
OneHelm support

Electrical Features

Power Input 10 to 32 Vdc
Typical current draw at 12 Vdc 1.5 A
Maximum current draw at 12 Vdc 6.0 A
Maximum power usage at 10 Vdc 40.1W

Sonar Features

Displays sonar
Power output 1 kW
Traditional sonar (dual frequency/beam) built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP)
ClearVü built-in 260/455/800/1000/1200 kHz
SideVü built-in 260/455/800/1000/1200 kHz
Panoptix™ sonar
LiveScope

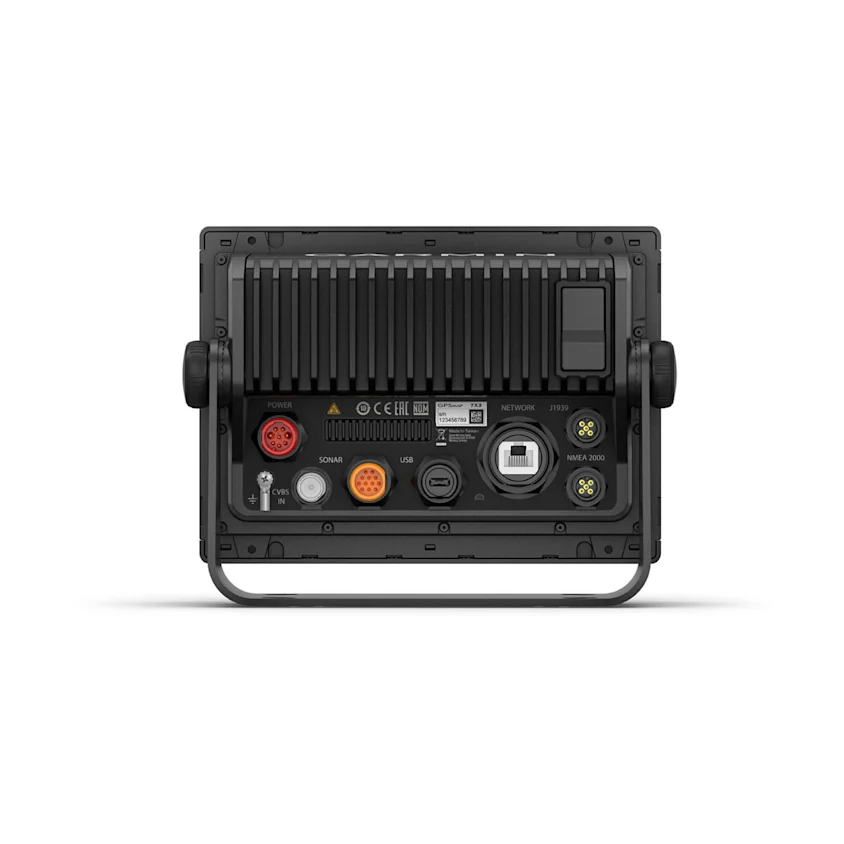

Connections

NMEA 2000® ports 1
Connections NMEA0183 Input Ports 1
NMEA 0183 output (Tx) ports 1
Video input ports 1 (BNC composite)
J1939 ports 1
Garmin Marine Network Ports 1
12-pin transducer ports 1
USB ports
BLUETOOTH® pairing
ANT+ (Connectivity)
Garmin Wi-Fi network (local connection)

In the Box

  • GPSMAP 8410xsv
  • Power cable
  • NMEA 2000® drop cable
  • NMEA 2000 T-connector
  • Bail mount with knobs
  • Flush mount kit
  • Sun cover
  • Trim piece snap covers
  • Documentation
