10" 600-Watt Sports Marine Subwoofer with RGB LED Lighting

Part Number 010-02198-20

Description

EXPERIENCE SOUND AND COLOR

Enjoy high-performance low-end frequencies and multicolor RGB LED lighting1 with the XS Series subwoofers from Fusion — designed to add another dimension to your on-water audio entertainment experience at a midrange price point.


Experience multicolor RGB LED lighting1 to brighten up your boating experience.

Create a 2.1 audio zone to reduce system cost and simplify installation.

Enjoy high-resolution bass reproduction from the quality polypropylene cone.

With an increase in real power, the voice coil provides a high-quality sound experience.

The subwoofers are available in 10” designs with both classic and sports style grilles.


Engineered to last season after season, the subwoofers include a 3-year warranty.

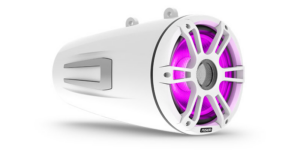

DESIGNED AND ENGINEERED TO TRUE-MARINE STANDARDS

Built on the True-Marine design philosophy from Fusion, the XS Series subwoofers have achieved an IP65 rating for protection against dust and water ingress and have been tested to a high level of protection against salt fog, temperature, vibration and UV.

DESIGNED TO COMPLY WITH ISO12216

Tested to international standards for pressure and water ingress, the XS Series subwoofers are designed and built for superior quality and robustness.

VERSATILE SYSTEM INTEGRATION

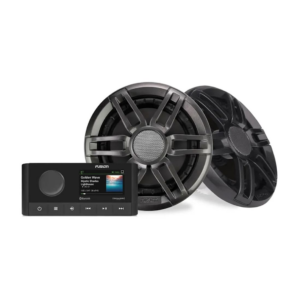

Built for system versatility and ease of integration, you can connect your XS Series subwoofer directly to a 2.1 audio zone compatible system, such as the Apollo™ Series, without the need for an external amplifier. This helps to reduce system cost and simplifies installation.

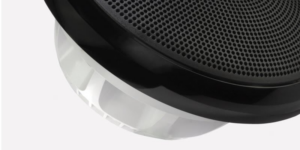

INJECTION-MOLDED POLYPROPYLENE CONE (IMPP)

By using a translucent cone, we can incorporate consistent multicolor illumination1. It also produces defined, high-resolution low frequencies from the excellent self-damping and bass reproduction.

LARGE DIAMETER VOICE COIL

With an increase in real power and efficiency, the large-diameter voice coil delivers a truly high-quality sound experience.

HIGH-QUALITY BASKET CONSTRUCTION

The basket is constructed using high-quality engineered plastics to deliver enhanced durability when exposed to the marine environment.

MULTICOLOR RGB LED LIGHTING

The sports style XS Series subwoofers with RGB LED lighting provide bright and even LED illumination in a wide range of colors, letting you choose any color to match the mood, set the tone or complement your music to enhance your audio entertainment experience.

CONTROLLING THE RGB LIGHTING

Control the color (static or dynamic), brightness, light mode and speed by using the optional MS-RGBRC wireless remote control (sold separately).

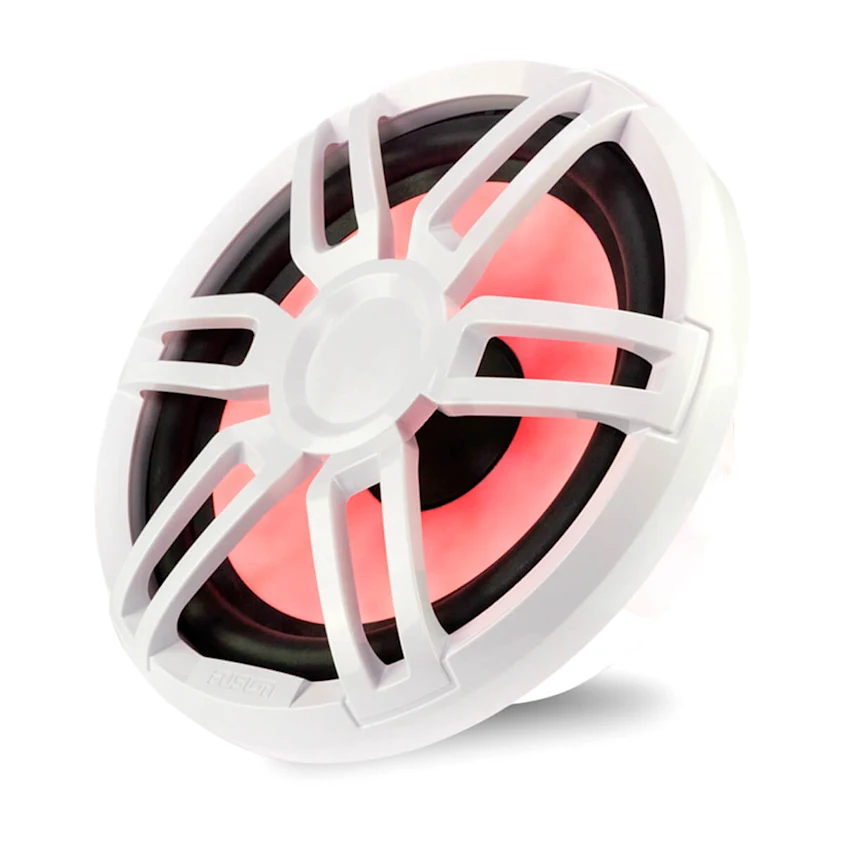

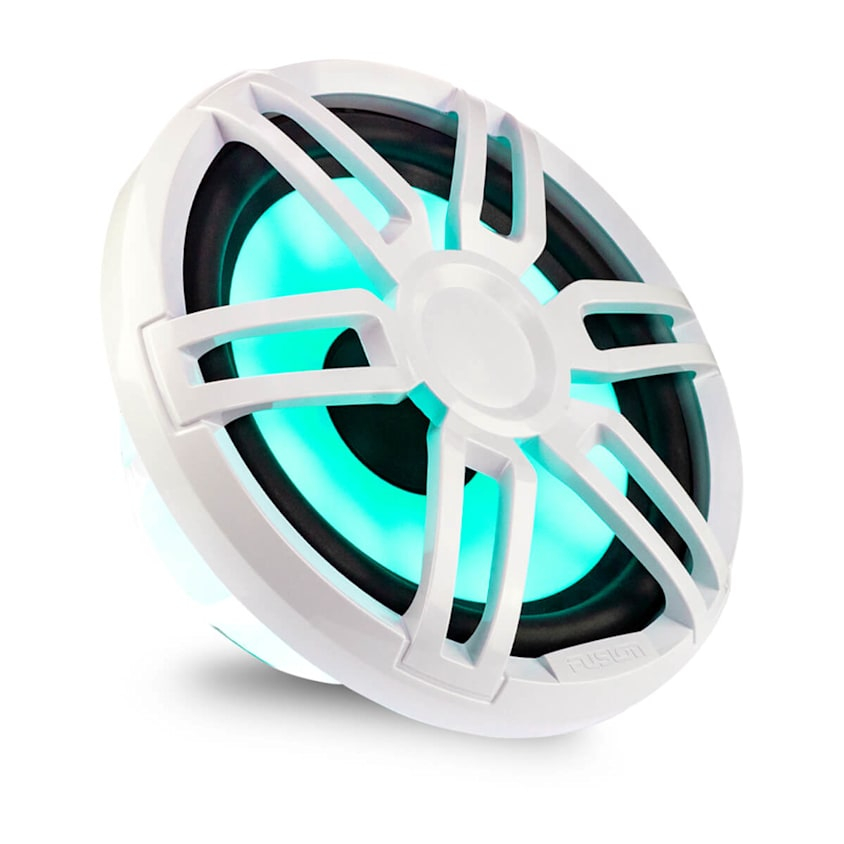

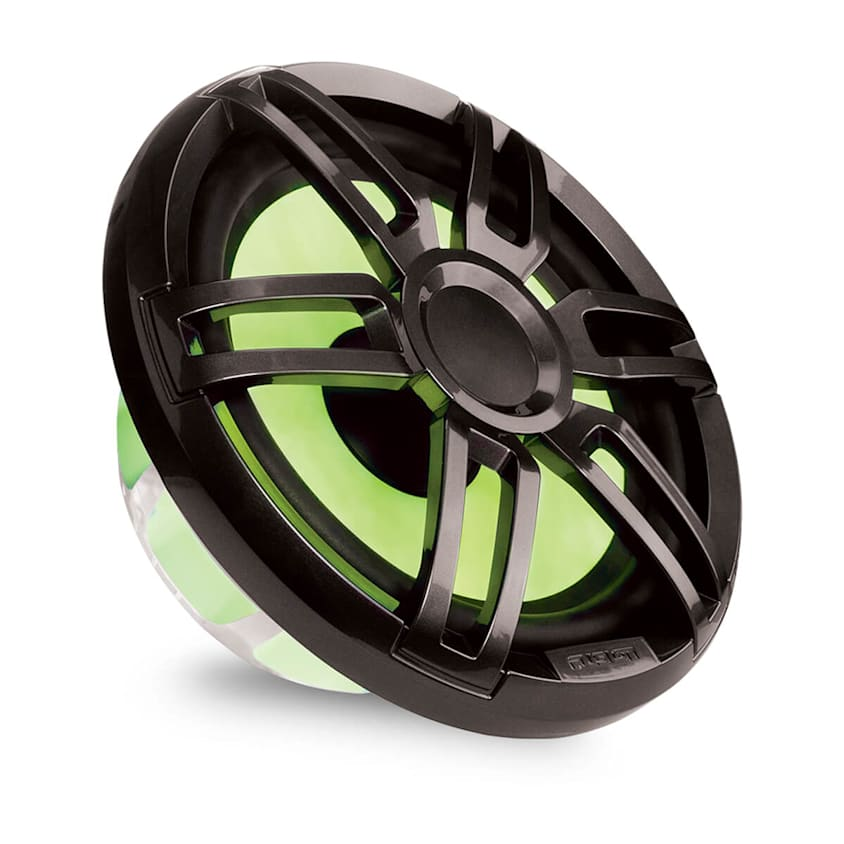

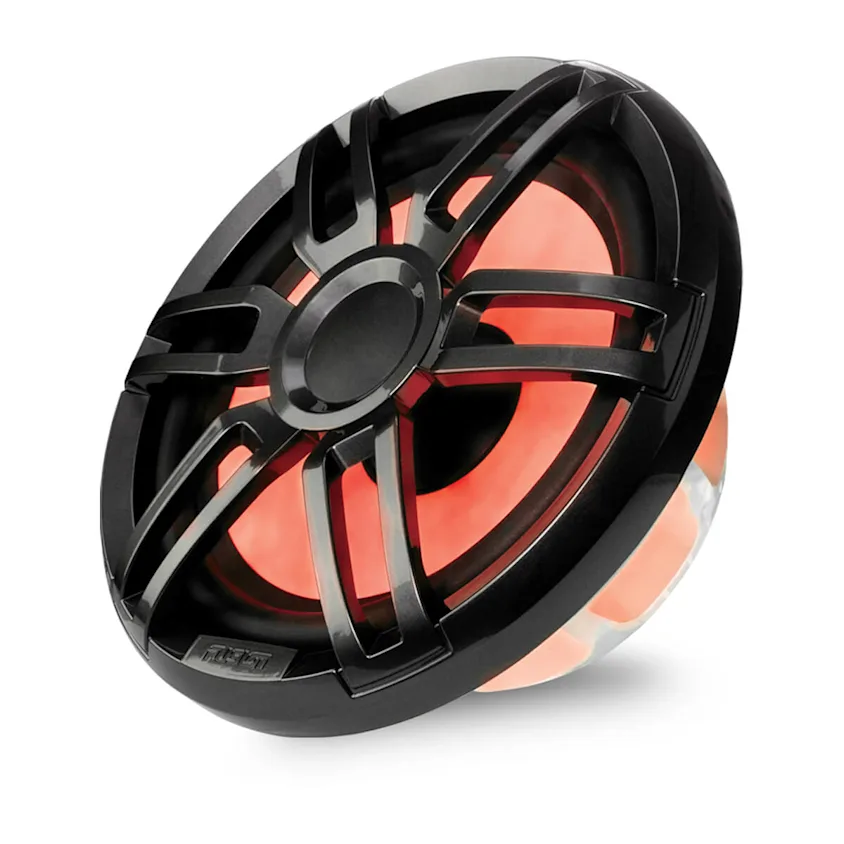

SPORTS STYLE SUBWOOFER WITH RGB LED LIGHTING

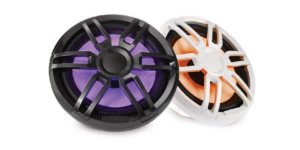

The XS Series sports style subwoofer with RGB LED lighting is available in a 10” size with interchangeable sports white/sports gray grilles and feature multicolor illumination options.

SPORTS-STYLE SUBWOOFER

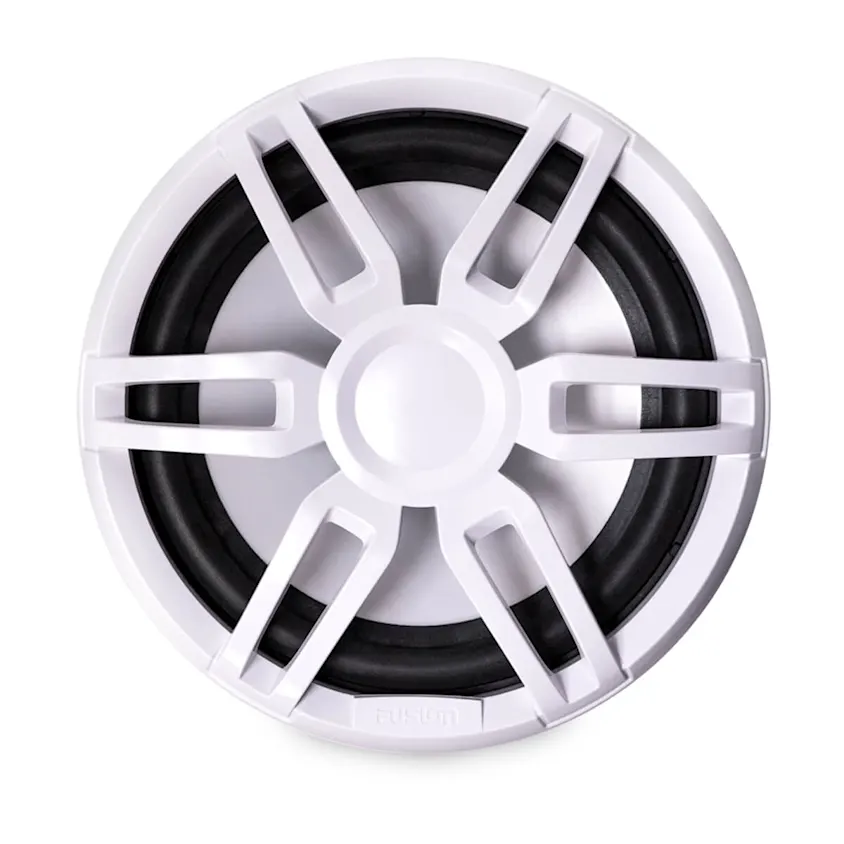

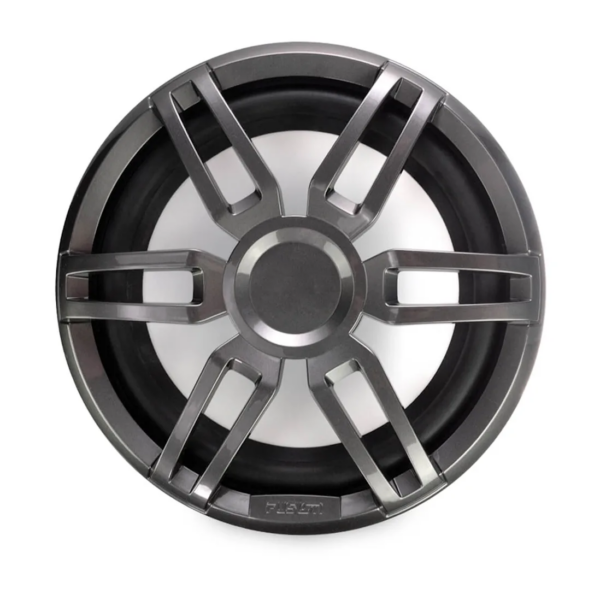

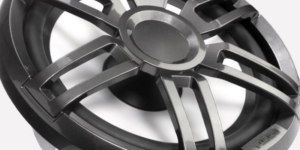

The XS Series sports-style subwoofer is available in a 10” size with interchangeable sports white/sports gray grilles for an attractive modern finish.

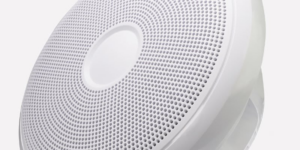

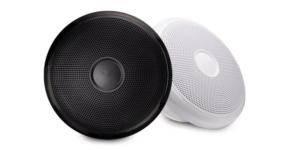

CLASSIC STYLE SUBWOOFER

The XS Series classic style subwoofer is available in a 10” size with interchangeable classic white/classic black grilles for a timeless, elegantly styled finish to blend with the aesthetics of your boat.

Specs

General

Sizes 10"
Color Classic White/Black or Sports Gray/White
Physical dimensions (Diameter) 10" (Classic/Sports): 10.79" (274 mm)
Physical dimensions (Depth) 10" (Classic): 5.59" (142 mm)
10" (Sports): 5.79" (147 mm)
Weight 6.17 lbs (2.8 kg)
Water and dust rating IP65
Speaker type Subwoofer
Continuous power handling (RMS) 120 W
Sensitivity (SPL @ 1 W/1 m) 87 dB
Frequency response (+/- 3 dB) 30 Hz-2 kHz
Nominal impedance 4 Ω
LED lighting yes - RGB (selected Sport models only)
LED supply voltage 10.8-16 VDC (selected Sport models only)
LED Load Current @ 14.4 VDC (max) 150 mA (selected Sport models only)
Operating temperature range 32° to 122° F (0° to 50° C)
Cone material Polypropylene Cone with Rubber Surround
Warranty 3 years

Electrical Features

Compass-safe distance 146" (370 cm)

Connections

Speaker connections Spade Connectors
LED connection Bullet Connectors (selected Sport models only)

Mounting Dimensions

Mounting diameter clearance 8.78" (223 mm)
Mounting depth clearance 4.45" (113 mm)
Frontal grille protrusion 1.46" (37 mm)

In the Box

10" 600-Watt Sports Marine Subwoofer with RGB LED Lighting

  • XS-SL10SPGW subwoofer
  • 6 Phillips stainless steel mounting screws (4.8 mm x 50 mm (10 gauge x 2”))
  • Speaker grilles (1 sports gray/1 sports white)
  • Documentation
