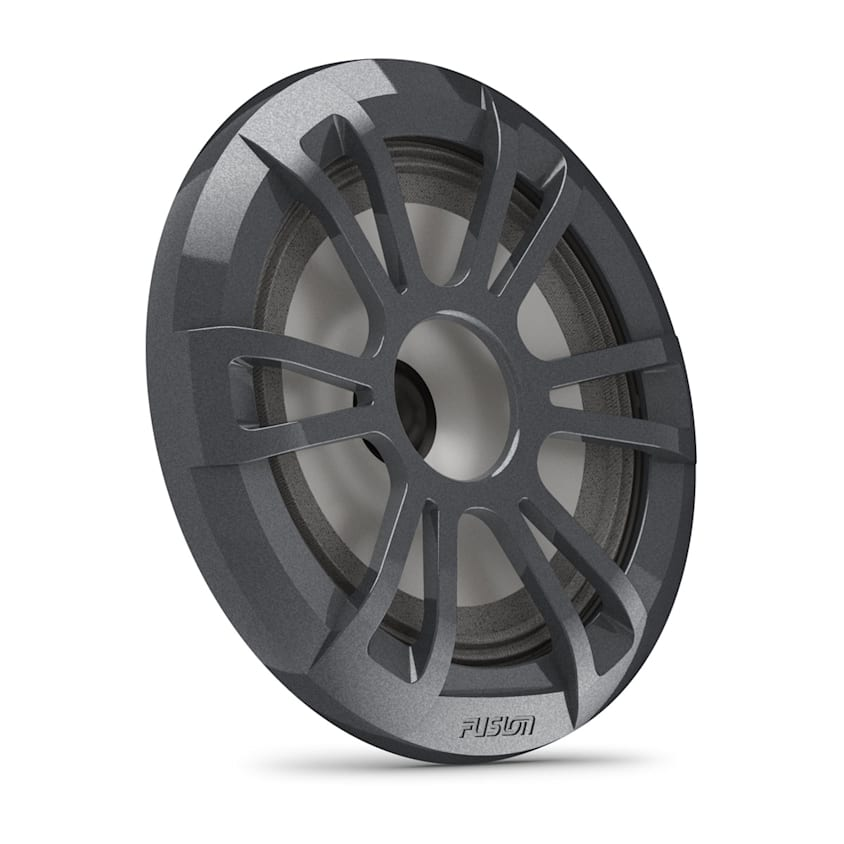

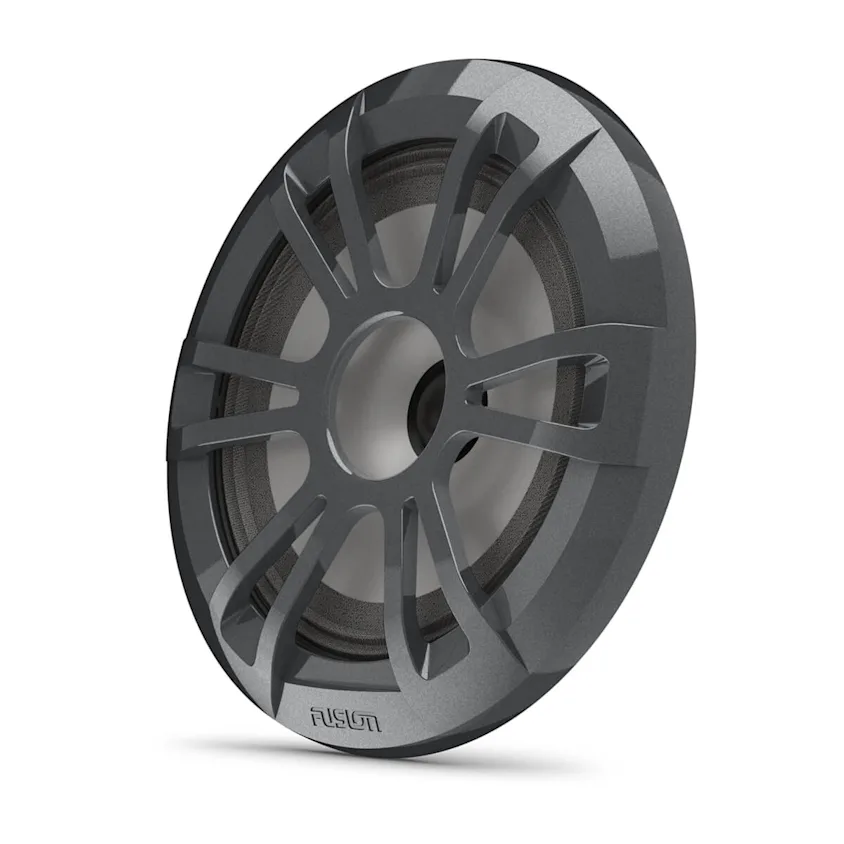

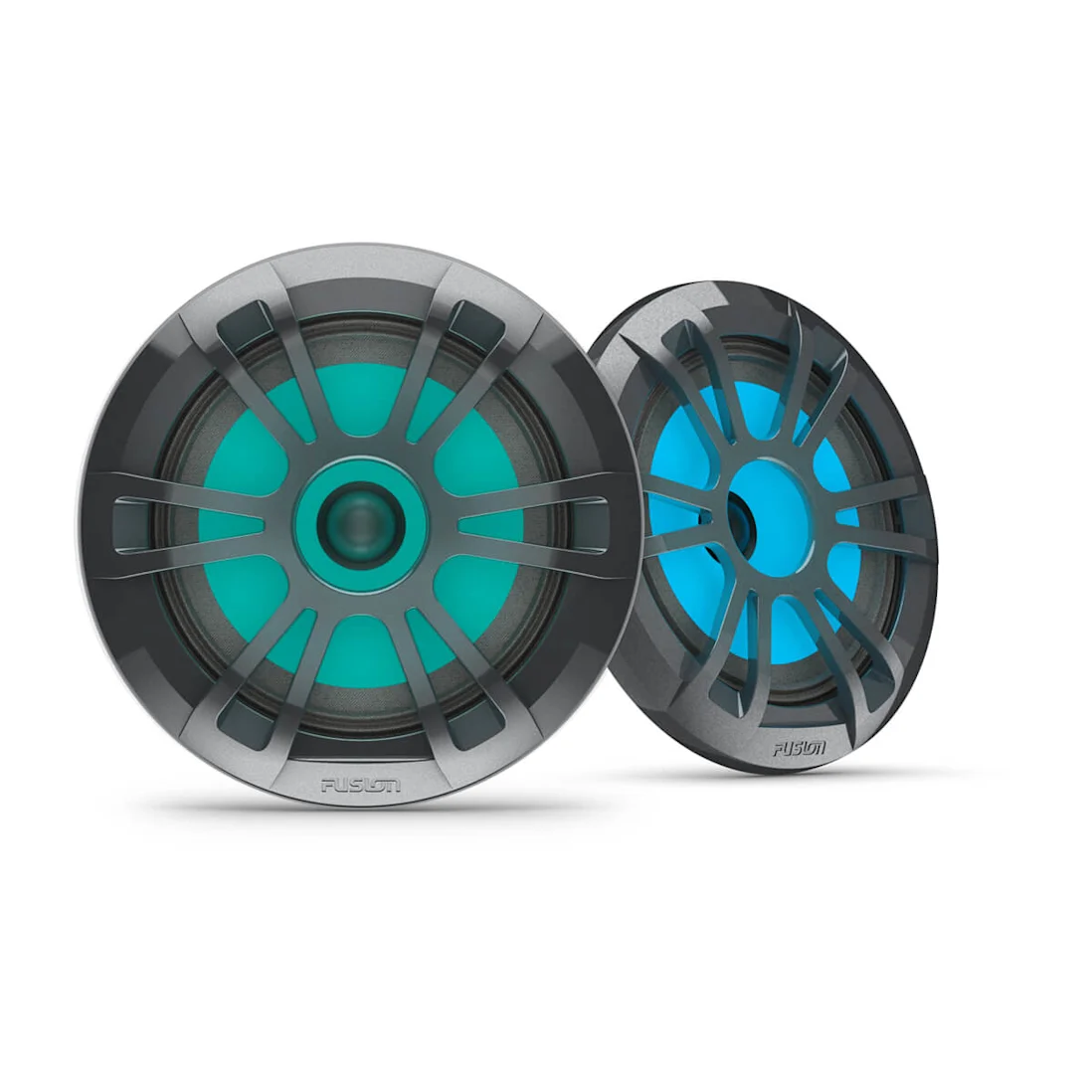

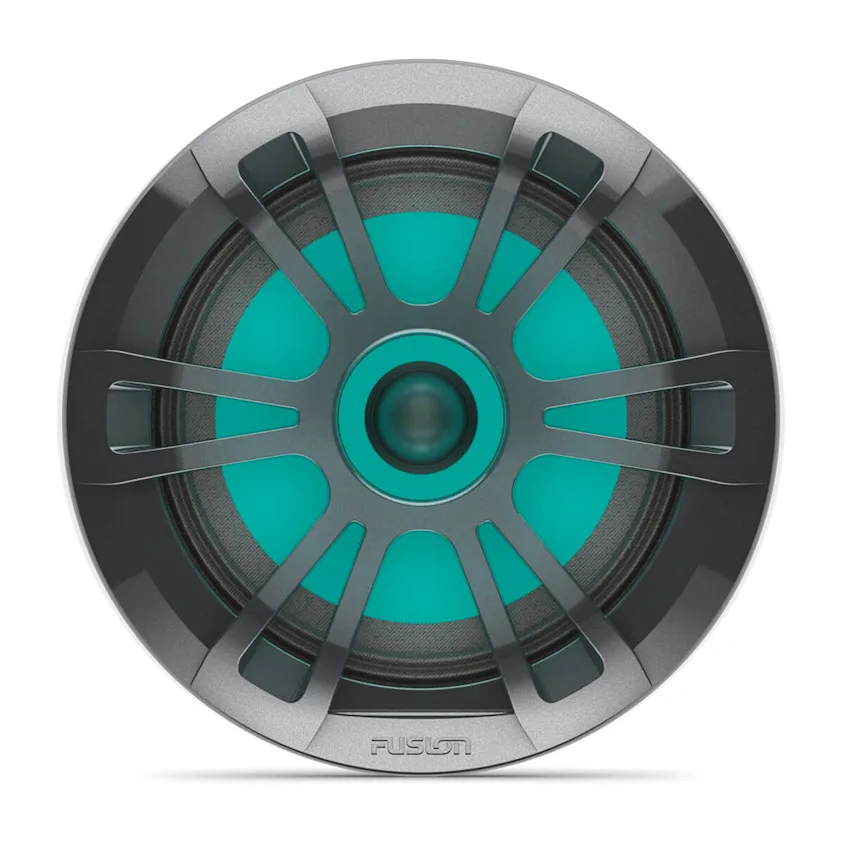

Fusion® EL-FL651SPG 6.5″ EL Series Marine Speakers (010-02080-20)

Fusion® EL-FL651SPG 6.5" EL Series Marine Speakers (010-02080-20)
Fusion® EL-FL651SPG 6.5" EL Series Marine Speakers (010-02080-20) - Image 2
Fusion® EL-FL651SPG 6.5" EL Series Marine Speakers (010-02080-20) - Image 3
Fusion® EL-FL651SPG 6.5" EL Series Marine Speakers (010-02080-20) - Image 4
Fusion® EL-FL651SPG 6.5" EL Series Marine Speakers (010-02080-20) - Image 5
Fusion® EL-FL651SPG 6.5" EL Series Marine Speakers (010-02080-20) - Image 6
Fusion® EL-FL651SPG 6.5" EL Series Marine Speakers (010-02080-20) - Image 7

Fusion® EL-FL651SPG 6.5″ EL Series Marine Speakers (010-02080-20)

6.5" 80-Watt Sports Gray Marine Speaker (Pair) with RGB LED Lighting

Part Number 010-02080-20

Categories ,

Description

ENERGIZE YOUR BOATING EXPERIENCE

Enjoy quality audio and multicolor RGB LED lighting to enhance your boating experience with the EL Series speakers from Fusion.

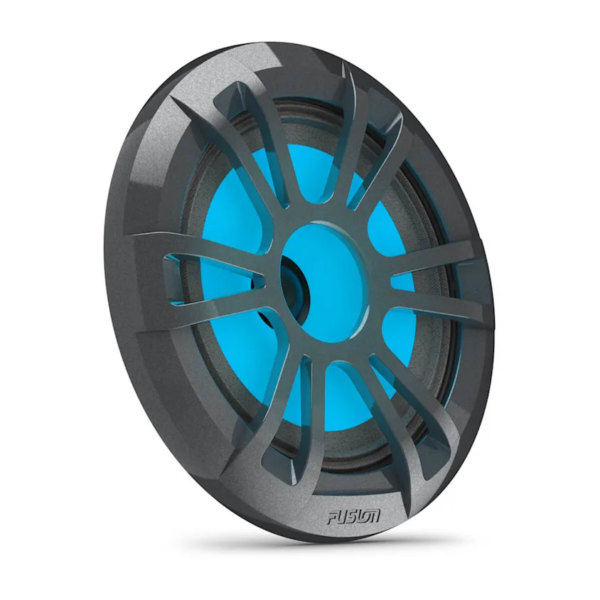

Experience multicolor RGB LED lighting (sports style with LED model only) to brighten up your boating experience.

The injection-molded polypropylene cone provides clean, clear audio reproduction.

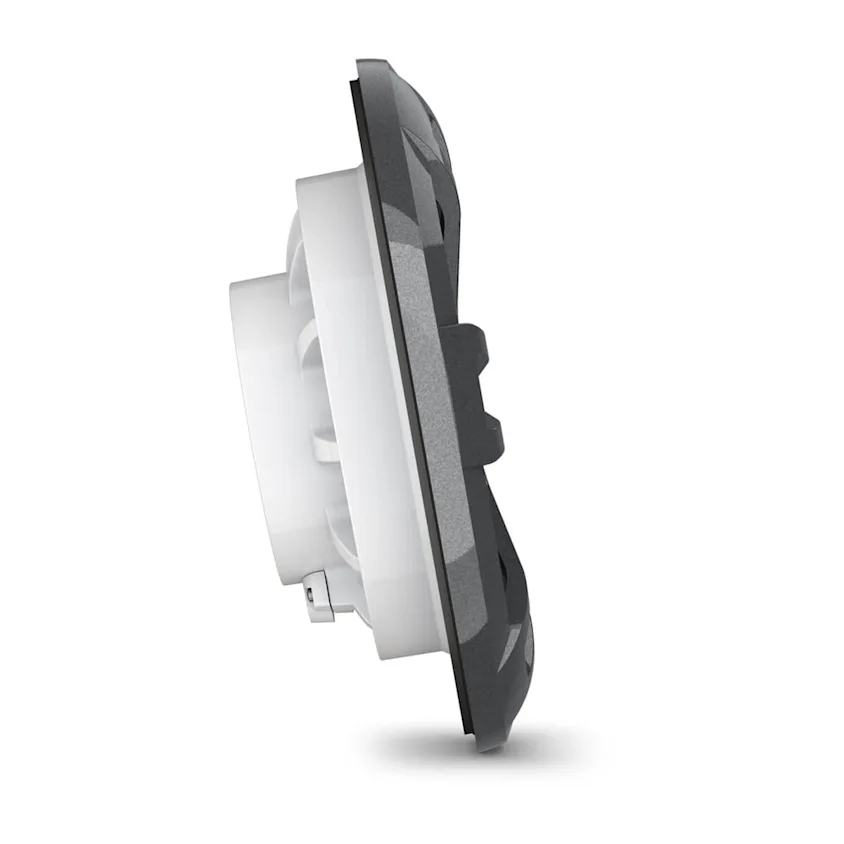

The shallow basket design provides increased versatility during installation.

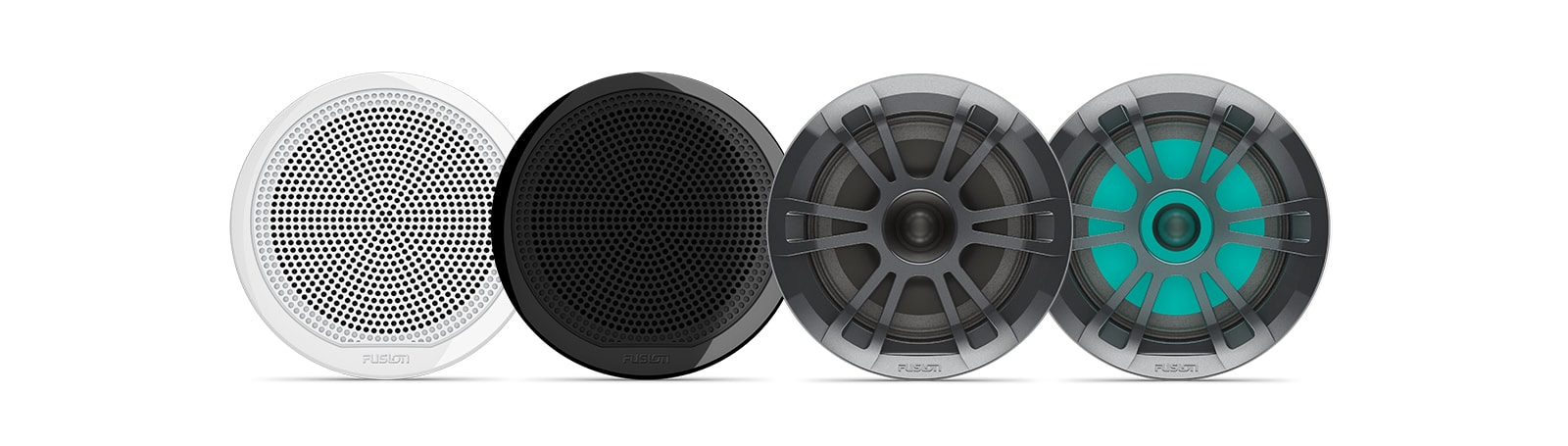

The speakers are available in a 6.5” design with both classic and sports style grilles.

Salt fog resistant and UV stable design for the harsh marine environment.

DESIGNED AND ENGINEERED FOR THE MARINE ENVIRONMENT

The EL Series speakers have an IP65 rating for protection against dust and water ingress and have been tested to a high level of protection against salt fog and UV.

DESIGNED TO COMPLY WITH ISO12216

Tested to international standards for pressure and water ingress, the EL Series speakers are designed and built for superior quality and robustness.

QUALITY MATERIALS AND ACOUSTIC ENGINEERING

The EL Series speakers incorporate high-quality materials and marine-specific design elements, ensuring they look and sound great on the water.

Specs

General

Sizes 6.5"
Color Classic White or Classic Black or Sports Gray
Physical dimensions (Diameter) 6.5" (Classic): 6.93" x (176 mm)
6.5" (Sports): 6.93" (176 mm)
Physical dimensions (Depth) 6.5" (Classic): 2.26" (57.5 mm)
6.5" (Sports): 2.32" (59 mm)
Weight 1.26 lbs (0.57 kg)
Water and dust rating IP65
Speaker type Full Range
Continuous power handling (RMS) 20 W
Sensitivity (SPL @ 1 W/1 m) 88 dB
Frequency response (+/- 3 dB) 45 Hz-16 kHz
Nominal impedance 4 Ω
Recommended amplifier power (RMS) 15-60 W/Channel
LED lighting yes - RGB (selected Sport models only)
LED supply voltage 10.8-16 VDC (selected Sport models only)
LED Load Current @ 14.4 VDC (max) 150 mA (selected Sport models only)
Operating temperature range 32° to 122° F (0° to 50° C)
Cone material Polypropylene Cone with Cloth Surround
Warranty 1 year

Electrical Features

Compass-safe distance 100" (254 cm)

Connections

Speaker connections Spade Connectors
LED connection Bullet Connectors (selected Sport models only)

Mounting Dimensions

Mounting diameter clearance 5.12" (130 mm)
Mounting depth clearance 1.69" (43 mm)
Frontal grille protrusion 0.75" (19 mm)

In the Box

  • One pair of speakers (based on what you select)
  • 12 Phillips stainless steel mounting screws (4.2 mm x 25.4 mm (8 gauge x 1”))
  • Two 20 ft (6 meter) speaker cables
  • Documentation
