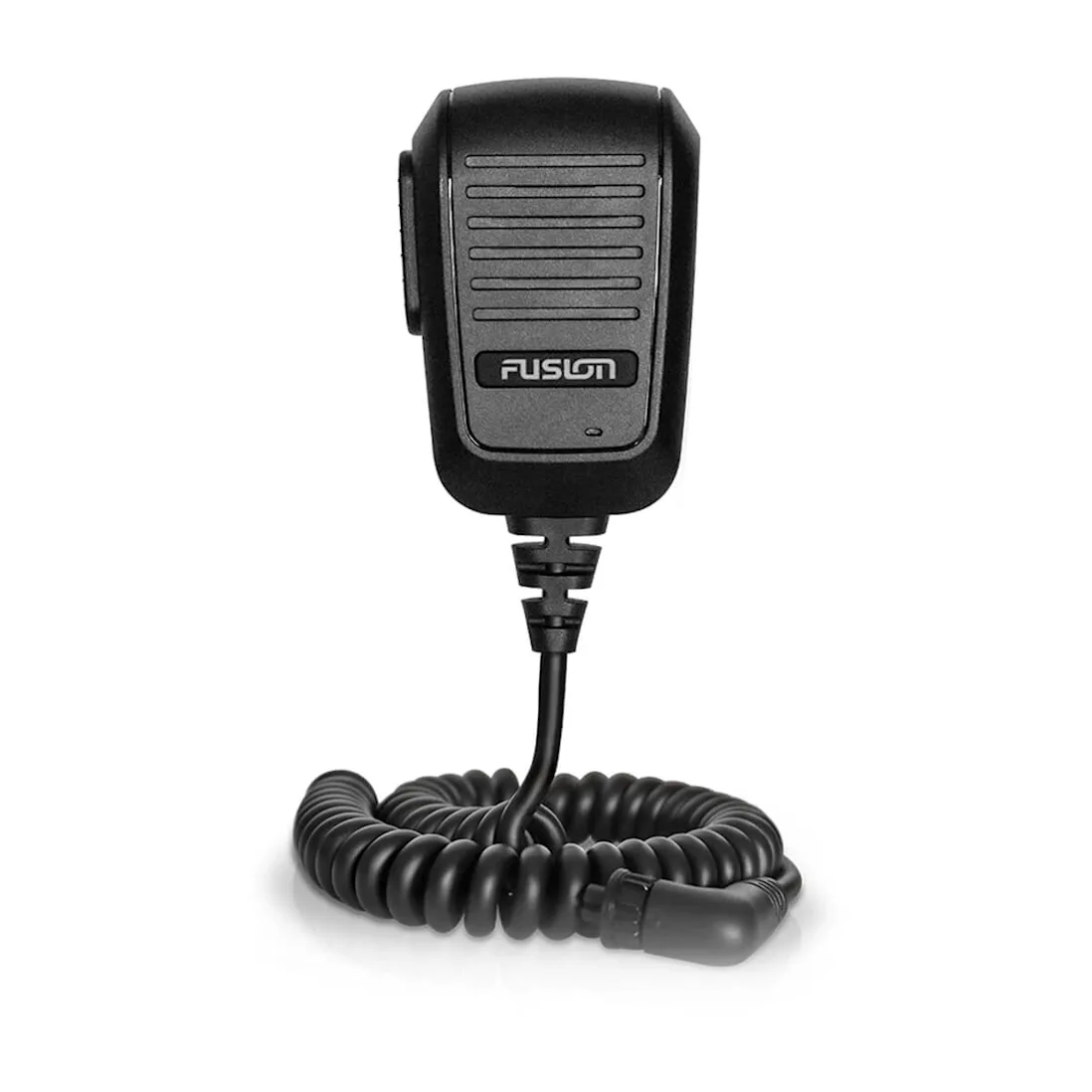

Fusion Handheld Microphone

PART NUMBER 010-13014-00

Category:

Description

QUICK ANNOUNCEMENTS ON THE GO

The handheld microphone is designed for compatible Fusion stereos with telemute feature, enabling you to make announcements over your onboard audio entertainment system.

alt text

An easy-to-install, plug-and-play
solution for compatible
Fusion stereos.

alt text

Make announcements
even when listening to your
favourite song.

alt text

Rated IPX7 water-resistant
to perform and last on board.

COMPACT DESIGN

The Fusion handheld microphone
features built-in pre-amplification
and a compact size, making it an easy
addition to the dash space
of your helm. A microphone
hanger is included in the box for a
clean and tidy finish.

COMMUNICATE IN AND
AROUND YOUR BOAT

The handheld microphone is the perfect
device for communicating when
wakeboarding, water-skiing or fishing,
for social gatherings or boat raft-ups,
on tourist boats and for warning
others of water-hazard situations.

PLAYBACK OVERRIDE

Make announcements even when
listening to your favourite song.
Simply squeeze the trigger on your
handheld microphone and
the audio playback on your
Fusion stereo will be paused,
allowing onboard broadcasting1.

SPECS

General

Physical dimensions (WxHxD) 60 x 88 x 34 mm
Weight 250 g
Water rating IPX7
Power input 10.5-32 VDC
Operating temperature range 0° to 50° C
Current consumption 5 mA @ 14.4 V input
Output (Max) 1 V RMS
Total harmonic distortion and noise (Vo = 1 V RMS, 1 kHz) < 0.1% V RMS
Frequency response 100 Hz – 4 kHz
Gain +18 ± 0.5 dB
Load impedance 10k ohm
Fuse (not included) 3 A
Cable length 60 cm
Warranty 1 year

In the Box

  • Fusion Handheld Microphone
  • Power-telemute RCA cable
  • Mounting plate with screws
  • Microphone hanger with screws
  • Mounting plate gasket
  • Documentation
